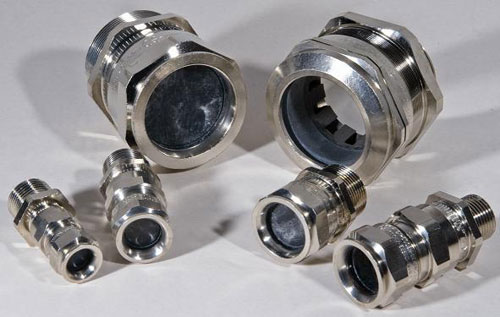

IP68 Metal Cable Glands PG thread

Product Name: IP68 Metal Cable Glands PG thread

Product Details: IP68 Metal Cable Glands PG thread

Specifications (Detailed Product Description ) :
Material : nickel plated brass for body with lock nut
Insert : Polyamid 6
Gasket:NBR (nitrile rubber buna)
Size in Metric: PG7-PG63
Protection level: IP68 / 5 bar pressure
Temperature stability: -40°C to 100°C (Short period at 120°C)

Function : The metal cable gland is your guarantee of superior grip, strain relief, sealing and protection of your electrical installations against the ingress of dust, moisture and submersion.

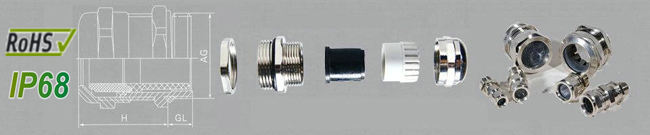

Cable Gland Selection Table

Thread Spec.	Cable Range	Outer diameter of thread	Mounting hole diameter	Thread length	Thread lenght(langthened type)	Joint length	Spanner diameter
PG7	6.5-3	12.5mm	12.5-12.7mm	7mm	10mm	19mm	14mm
PG7	5-2	12.5mm	12.5-12.7mm	7mm	10mm	19mm	14mm
PG9	8-4	15.2mm	15.2-15.4mm	8mm	10mm	20mm	17mm
PG9	6-2	15.2mm	15.2-15.4mm	8mm	10mm	20mm	17mm
PG11	10-5	18.6mm	18.6-18.8mm	8mm	10mm	21mm	20mm
PG11	7-3	18.6mm	18.6-18.8mm	8mm	10mm	21mm	20mm
PG13.5	12-6	20.4mm	20.4-20.6mm	8mm	15mm	22mm	22mm
PG13.5	9-5	20.4mm	20.4-20.6mm	8mm	15mm	22mm	22mm
PG16	14-10	22.5mm	22.5-22.7mm	9mm	15mm	23mm	24mm
PG16	12-6	22.5mm	22.5-22.7mm	9mm	15mm	23mm	24mm
PG19	14-10	25mm	25-25.2mm	9mm	15mm	25mm	24/27mm
PG21	18-13	28.3mm	28.3-28.5mm	9mm	15mm	27mm	30mm
PG21	16-9	28.3mm	28.3-28.5mm	9mm	15mm	27mm	30mm
PG25	22-15	32mm	32-32.2mm	10mm	15mm	29mm	35mm
PG29	25-18	37mm	37-37.2mm	11mm	15mm	31mm	40mm
PG29	20-13	37mm	37-37.2mm	11mm	15mm	31mm	40mm
PG36	33-22	47mm	47-47.2mm	12mm	15mm	37mm	50mm
PG36	26-20	47mm	47-47.2mm	12mm	15mm	37mm	50mm
PG42	38-32	54mm	54-54.2mm	13mm	15mm	38mm	57mm
PG42	31-25	54mm	54-54.2mm	13mm	15mm	38mm	57mm
PG48	44-37	59.3mm	59.3-59.5mm	14mm	15mm	38mm	65mm
PG48	35-29	59.3mm	59.3-59.5mm	14mm	15mm	38mm	65mm
PG63	52-42	72mm	72-72.2mm	15mm	20mm	42mm	77mm
