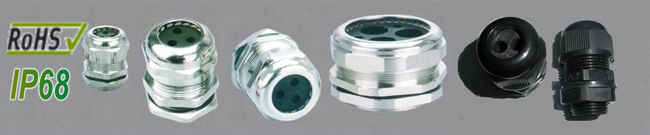

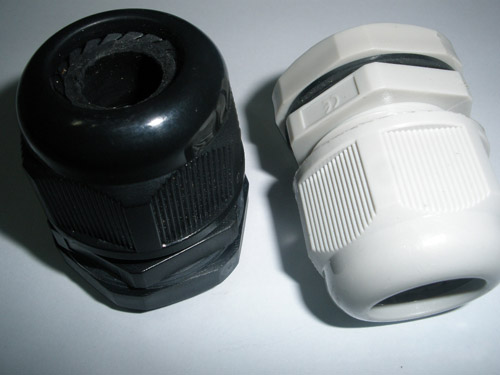

Cable Glands Multiple hole type (two,thress,four holes )
Specifications (Detailed Product Description) :
Material : Polyamid 6 or Nickel Plated Brass for body with lock nut
Insert : Polyamid 6
Gasket:NBR (nitrile rubber buna)
Size: PG7-PG63 /M12-M100
Protection level: IP68 / 5 bar pressure
Temperature stability: -40°C to 100°C (Short period at 120°C)
Function : The cable gland is your guarantee of superior grip, strain relief, sealing and protection of your electrical installations against the ingress of dust, moisture and submersion.
Cable Gland Selection Table
AG(PG) | AG(Metric) | NPT | Cable Diameter (mm) | Overall length (mm) (L1+L2+L3) |
B1 | D1 | D2 | Pack Quantity (pcs) | Available Color |
PG7 | M12x1.5 | 3.5-6 | 35.4 | 6.4 | 10.9 | 8.1 | 100 | white,black ,gray | |
PG9 | M16x1.5 | G1/2'' | 4-8 | 42.9 | 8.6 | 15.3 | 12.2 | 100 | white,black ,gray |
PG11 | M18x1.5 | 5-10 | 43.6 | 10.7 | 17.9 | 14.6 | 100 | white,black ,gray | |
PG13.5 | M20x1.5 | G1/2'' | 6-12 | 45.7 | 13.3 | 20.2 | 16.2 | 100 | white,black ,gray |
PG16 | M22x1.5 | 10-14 | 50.2 | 14.3 | 21.3 | 18.3 | 50 | white,black ,gray | |
PG19 | M24x1.5 | 12-15 | 51.8 | 15.5 | 24.7 | 20.5 | 50 | white,black ,gray | |
PG21 | M27x1.5 | G3/4'' | 13-18 | 53.4 | 16.7 | 26.9 | 21.8 | 50 | white,black ,gray |
PG25 | M30x1.5 | G1'' | 15-22 | 55.2 | 18.2 | 29.8 | 25 | 50 | white,black ,gray |
PG27 | M32x1.5 | 17-23 | 55.2 | 19.2 | 29.8 | 25 | 25 | white,black ,gray | |
PG29 | M36x1.5 | G1 1/4'' | 18-25 | 59.8 | 24.8 | 35.1 | 29.8 | 25 | white,black ,gray |
PG36 | M46x1.5 | G1 1/2'' | 22-23 | 63.8 | 30.7 | 44.7 | 37.1 | 25 | white,black ,gray |
PG42 | M54x1.5 | 30-38 | 73.7 | 35.6 | 50.2 | 43.1 | 20 | white,black ,gray | |
PG48 | M60x1.5 | 34-44 | 80.5 | 41.4 | 56 | 48.1 | 5 | white,black ,gray | |
PG63 | G2'' | 42-54 | 102.5 | 45.3 | 62 | 56.2 | 5 | white,black ,gray |
