Home > Plastic Enclosure > Waterproof Enclosure > Chinese Plastic Waterproof Enclosure outdoor enclosure waterproof junction boxPWP001with 64*57*35mm

Chinese Plastic Waterproof Enclosure outdoor enclosure waterproof junction boxPWP001with 645735mm

Product Name: Chinese Plastic Waterproof Enclosure outdoor enclosure waterproof junction boxPWP001with 64*57*35mm
Price: $1.00
Weight: 0.06 Kg
Weight: 60 g
Model NO.: PWP001
Size: 64X57X35mm
Origin: CHINA
Packing: Each box in a pp bag , tens of box in an export pa
Brand Name: KEAO
Delivery Time: 7-10 days after order confirmation
Minimum Order: 100pcs
Supply Ability: 50000pcs per month
Quality System Certification: RoHS compliance

Product Details: Chinese Plastic Waterproof Enclosure outdoor enclosure waterproof junction boxPWP001with 64*57*35mm

Product name : Sealed Plastic Waterproof Enclosure For Electronic Plastic Protecting case

Item # : PWP001

Size : 64X57X35mm

Material: ABS

IP rating : IP65

Working temperature: -20ºC to +100ºC.

Features :

1.Tough Industrial Enclosures NEMA rated waterproof & dustproof ABS/PC Electonic Enclosure

2.The full set box are injection molded in ABS or Polycarbonate (under customer specified),

both material are RoHS compliance.

3.Solid gray or clear polycarbonate lid are available.

4.All boxes offer internal mounting bosses for mounting plates, PCB supports, Din-Rails mounting tabs etc.

5.High impact resistance and protection class,Ideal for outdoor or indoor industrial electronics and electrical applications.

6.Each enclosure is supplied with stainless steel screws and seal and optional metal or plastic mounting bracket for box assembly,

cable gland can be provided at a cost under customer's requirement.

7.We can turn out Standard enclosure into a Customized Standard enclosure by CNC machining without minimum order .

Secondary operations to fit customer exact needs :

1. printing logo or text on the product , printing include cheap silk screen and pad printing and costly heat transfer printing.

2. drilling holes, milling, and machining cut-outs for cable gland assembly,USB and network port,terminal connector,power swich etc.

you are requested to provide us drawing or physical sample.

3. painting .pantone code no. is needed for painting.

RoHS compliance

Polycarbonate NEMA rated/waterproof enclosure for outdoors, weatherproof

NEMA rated waterproof & dustproof ABS Electonic Enclosure

Internal screw bosses for mounting

plates, PCB supports, Din-Rails etc.

Recess in lid for mounting a membrane keypad

Plastic ABS gray IP65 Water Resistant Enclosure for outdoor use

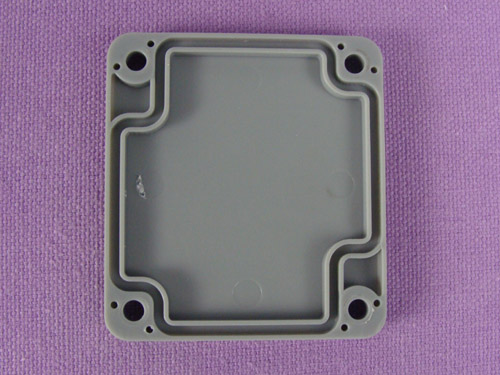

Product Images: Chinese Plastic Waterproof Enclosure outdoor enclosure waterproof junction boxPWP001with 64*57*35mm
