waterproof enclosure outdoor electronics enclosure plastic waterproof enclosure PWP253 26518580mm

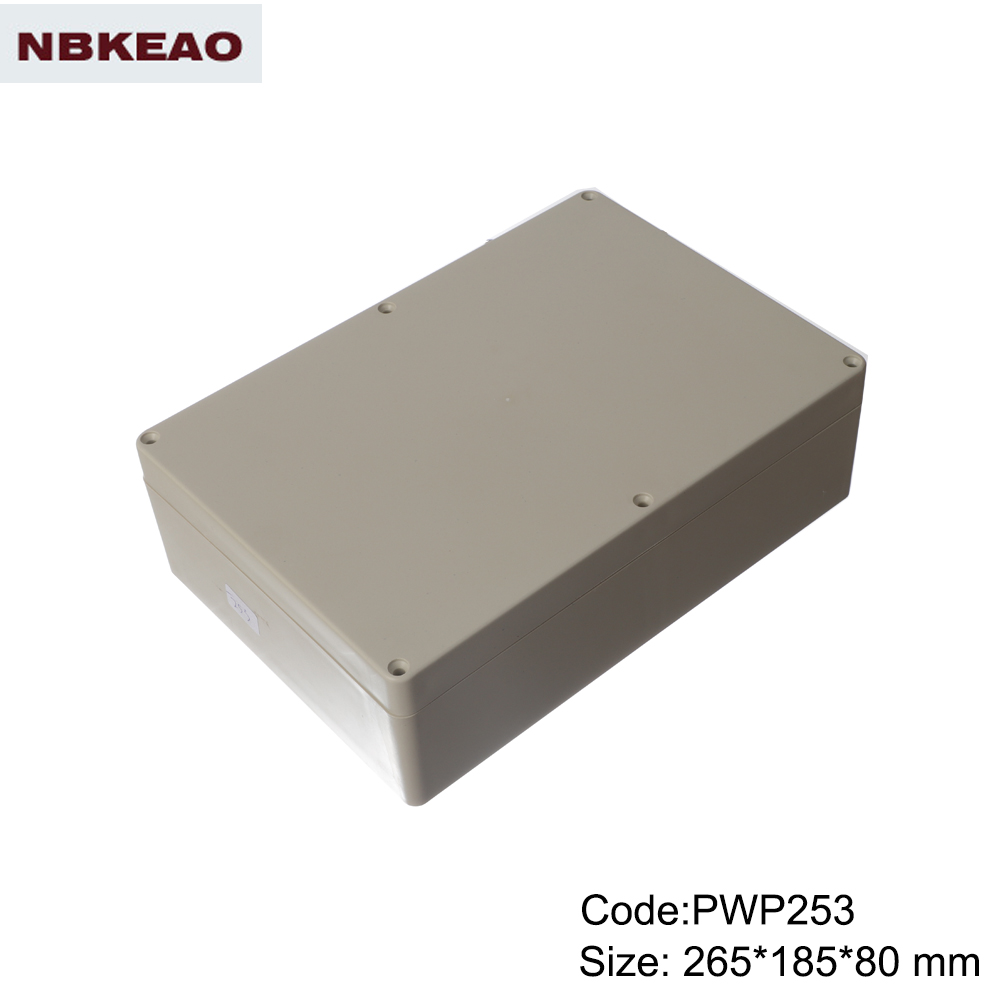

Product Name: waterproof enclosure outdoor electronics enclosure plastic waterproof enclosure PWP253 265*185*80mm
Price: $2.20
Weight: 0.7 Kg
Weight: 700 g
Model NO.: PWP253
Size: 265X185X80mm
Origin: CHINA
Packing: Each box in a PP bag
Brand Name: KEAO
Delivery Time: 7-10days
Minimum Order: 100 pcs
Supply Ability: 50000pcs per month
Quality System Certification: RoHS compliance

Product Details: waterproof enclosure outdoor electronics enclosure plastic waterproof enclosure PWP253 265*185*80mm

Product name :Waterproof Enclosure

Item # :PWP253

Size :265*185*80mm

Material:ABS

IP rating :IP65

Working temperature: -20ºC to +100ºC.

Features :

1.Tough Industrial Enclosures NEMA rated waterproof & dustproof ABS/PC Electonic Enclosure

2.The full set box are injection molded in ABS or Polycarbonate (under customer specified),

both material are RoHS compliance.

3.Solid gray or clear polycarbonate lid are available.

4.All boxes offer internal mounting bosses for mounting plates, PCB supports, Din-Rails mounting tabs etc.

5.High impact resistance and protection class,Ideal for outdoor or indoor industrial electronics and electrical applications.

6.Each enclosure is supplied with stainless steel screws and seal and optional metal or plastic mounting bracket for box assembly,

cable gland can be provided at a cost under customer's requirement.

7.We can turn out Standard enclosure into a Customized Standard enclosure by CNC machining without minimum order .

Secondary operations to fit customer exact needs :

1. printing logo or text on the product , printing include cheap silk screen and pad printing and costly heat transfer printing.

2. drilling holes, milling, and machining cut-outs for cable gland assembly,USB and network port,terminal connector,power swich etc.

you are requested to provide us drawing or physical sample.

3. painting .pantone code no. is needed for painting.

Product Images: waterproof enclosure outdoor electronics enclosure plastic waterproof enclosure PWP253 265*185*80mm
