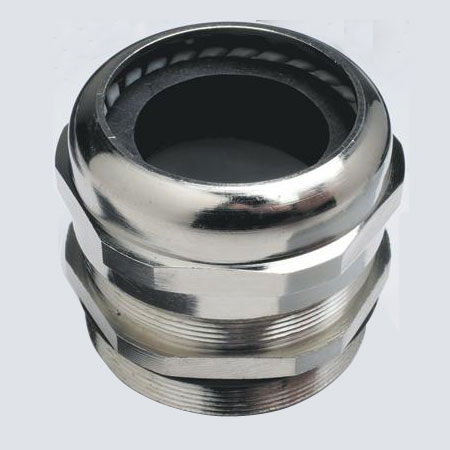

IP68 Metal Cable Glands Metric thread

Product Name: IP68 Metal Cable Glands Metric thread

Product Details: IP68 Metal Cable Glands Metric thread

Specifications (Detailed Product Description ) :

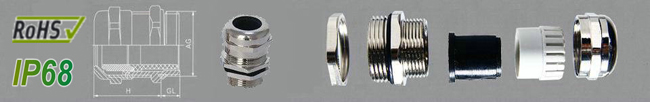

Material : nickel plated brass for body with lock nut
Insert : Polyamid 6
Gasket:NBR (nitrile rubber buna)
Size in Metric: M8 –M100
Protection level: IP68 / 5 bar pressure
Temperature stability: -40°C to

Function : The metal cable gland is your guarantee of superior grip, strain relief, sealing and protection of your electrical installations against the ingress of dust, moisture and submersion.

Cable Gland Selection Table

Thread spec.	Cable Range	Outer diameter of thread	Mounting hole diameter	Thread length	Thread length(langthened type)	Joint length	Spanner diameter
M8×1.25	4-2	8mm	8-8.2	5mm	7mm	16mm	11mm
M10×1.5	6-3	10mm	10-10.2	5mm	7mm	16mm	12mm
M12×1.5	6.5-3	12mm	12-12.2	7mm	10mm	19mm	14mm
M14×1.5	8-4	14mm	14-14.2	7mm	10mm	19mm	18mm
M16×1.5	8-4	16mm	16-16.2	8mm	10mm	20mm	18mm
M18×1.5	10-5	18mm	18-18.2	8mm	10mm	21mm	20mm
M20×1.5	12-6	20mm	20-20.2	8mm	15mm	22mm	22mm
M22×1.5	14-10	22mm	22-22.2	8mm	15mm	23mm	24mm
M24×1.5	14-10	24mm	24-24.2	9mm	15mm	25mm	24/27mm
M25×1.5	14-10	25mm	25-25.2	9mm	15mm	25mm	24/27mm
M25×1.5	18-13	25mm	25-25.2	9mm	15mm	27mm	30/27mm
M27×1.5(2)	18-13	27mm	27-27.2	9mm	15mm	27mm	30mm
M28×1.5(2)	18-13	28mm	28-28.2	9mm	15mm	27mm	30mm
M30×1.5(2)	18-13	30mm	30-30.2	9mm	15mm	29mm	30/32mm
M32×1.5(2)	22-15	32mm	32-32.2	10mm	15mm	29mm	35mm
M33×1.5(2)	22-15	33mm	33-33.2	10mm	15mm	29mm	35mm
M36×1.5(2)	25-18	36mm	36-36.2	10mm	15mm	31mm	40mm
M37×1.5(2)	25-18	37mm	37-37.2	10mm	15mm	31mm	40mm
M40×1.5(2)	25-18	40mm	40-40.2	11mm	15mm	31mm	40/45mm
M40×1.5(2)	30-22	40mm	40-40.2	11mm	15mm	35mm	45mm
M42×1.5(2)	30-22	42mm	42-42.2	11mm	15mm	35mm	45mm
M47×1.5(2)	33-25	47mm	47-47.2	11mm	15mm	37mm	50mm
M48×1.5(2)	33-25	48mm	48-48.2	11mm	15mm	37mm	50mm
M50×1.5(2)	38-32	50mm	50-50.2	12mm	15mm	37mm	57/55mm
M54×1.5(2)	38-32	54mm	54-54.2	12mm	15mm	38mm	57mm
M56×1.5(2)	38-32	56mm	56-56.2	12mm	15mm	38mm	57/59mm
M60×1.5(2)	44-37	60mm	60-60.2	13mm	15mm	38mm	65mm
M63×1.5(2)	44-37	63mm	63-63.2	13mm	15mm	38mm	65mm
M64×1.5(2)	44-37	64mm	64-64.2	13mm	15mm	38mm	65/68mm
M72×1.5	52-42	72mm	72-72.2	15mm	20mm	42mm	77mm
M75×1.5	52-42	75mm	75-75.2	15mm	20mm	42mm	77mm
M80×1.5	62-55	80mm	80-80.2	15mm	20mm	45mm	90mm
M88×1.5	70-65	88mm	88-88.2	15mm	20mm	45mm	94mm
M100×1.5	84-78	100mm	100-100.2	15mm	20mm	45mm	110mm
